Description

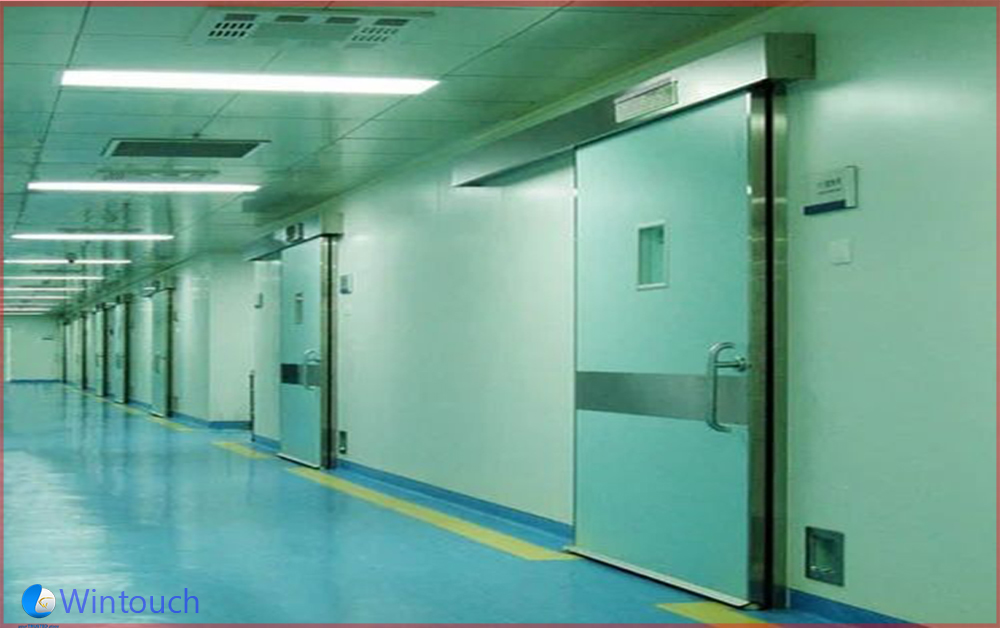

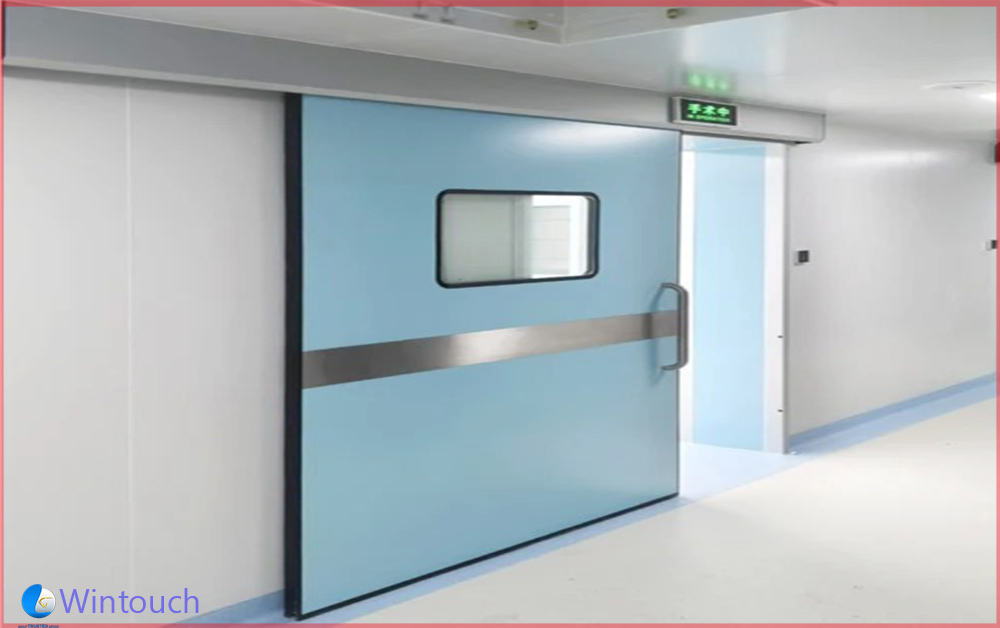

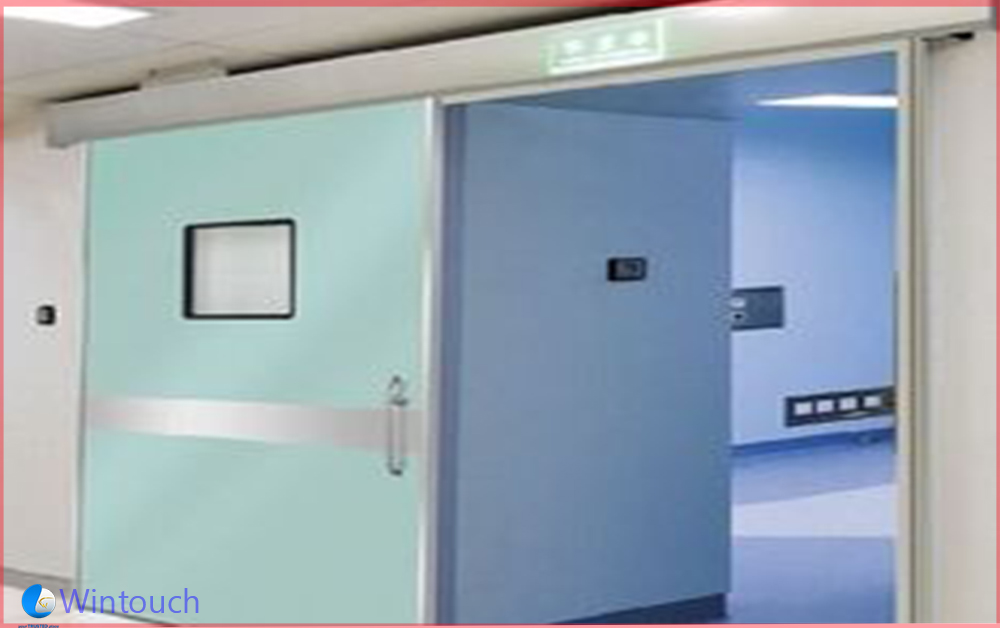

Automatic Hospital Door & Hermetic Door
Automatic hermetic sliding doors are airtight and suitable for
laboratories, hospitals, laboratories, desalination plants, pharmaceutical and
healthcare sectors. Provides airtight, soundproof, and hygienic protection
specifically required for hospital ICUs.
The doors are stainless steel and high pressure
laminated and airtight. The door body is made of colored steel or large plane
sub-light stainless-steel plate with foaming process and framed large plane glass.
Sliding doors are customizable. Sealing strips are installed on both sides of
the door or at the center joint, which are automatic doors in hospitals,
research institutes or other places where there is a need to clean dust and
sand or conform to sanitary requirements
Feature:
·
Wintouch doors are manufactured according to the standard of
automatic airtight doors that provide high technology, good sealing, corrosion
resistance and air tightness.
·
The solid body of the door is extremely thick, allowing for
quick opening and closing to minimize air circulation.
·
Prevents entry of dust and maintains humidity in clean room
requirements.
·
Door open/close operation is light and smooth. Indoor and
outdoor sound insulation effect is good.
·
Hermetic doors can be mounted directly on the wall.
·
Foot sensor switch or hand sensor switch can be used as per
user requirement.
·
Advanced brushless motor with very low power consumption.
·
Safe and reliable sensors identify passengers accurately.
·
With level handle to reduce the manual open force when the
down.
Technical data:
Gate sliding modes
| Single open / Double
open
|
Door weight
| Single
100-195 kg
Double 80-185 kg ×2
|
Clean opening width
| 600 – 1500 mm / 1200
– 1800 mm
|
Opening speed
| 300 mm – 600 mm / s
|
Closing speed
| 300 mm – 600 mm / s
|
Power supply voltage
| AC – 220v ± 10 %,
50/60 Hz
|
Power consumption
| ˂ 180 w
|
Manual opening force
| ˂ 50 N
|
Open style
| Foot sensor (As per
requirement)
|
