Description

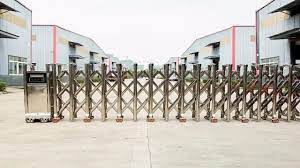

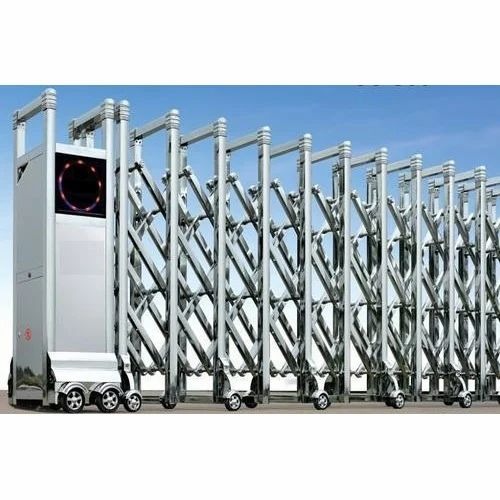

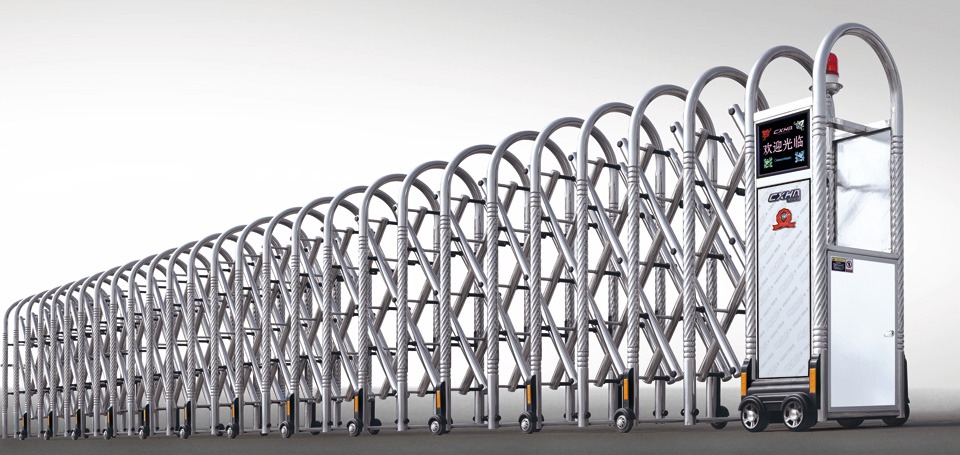

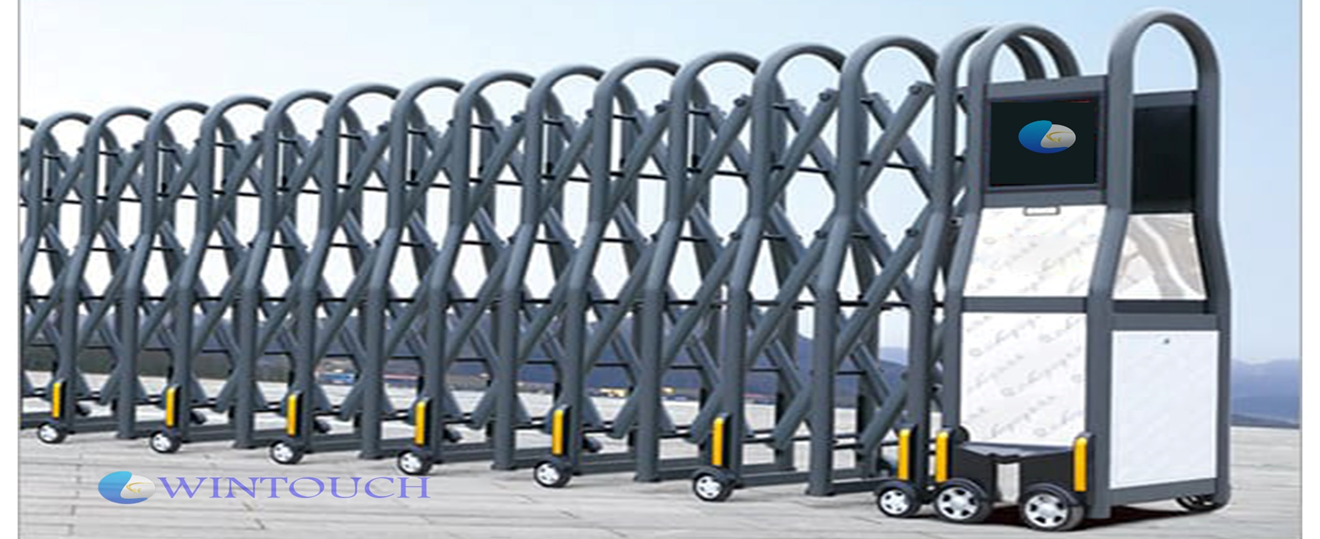

Automatic Retractable / Collapsible Gate
Retractable Gates are also called automatic collapsible
gate automatic folding gate. These are mainly hotels, industrial estates,
offices, apartments and factories where open and closed spaces are required. It is made of
stainless steel-304 grade or aluminum and is used as an alternative to remote
controlled gate. A spread area can be covered or surrounded in a very short
time. There are two types of Retractable/Collapsible gates - with rail and without
rail line. Retractable The gate is imported without motor or with motor. Gate
works in two types of systems. One with motor operation and other with manual
operation. Long gates use a motorized control system, electronic soft-slater
and mechanical buffer devices ensure smooth running, and a patented
wind-resistant device enables the electric gate to operate in strong winds. Besides, sensors
can be used for safety. There is no chance of accidents. Besides, it can be
opened or closed through a wall switch or remote-control system.
Retractable/collapsible Gate is an ideal system to facilitate unhindered entry
of authorized persons / vehicles in any factory, office, warehouse, hotel.
Features and Benefits of Retractable/Collapsible
gate:
·
Motorized control: : Heavy motors are used for long gate
applications.
·
Materials :
Stainless steel – 304 grade and Aluminum.
·
Strength :
The stainless-steel bodies provide strength and integrity for outdoor operations.
·
Anti-Rust : Being high grade SS or Aluminum it
is corrosion or rust resistant.
·
The Overall Operation is light and peaceful.
· Advanced
brushless motor ensures silents operation.
Technical data of Retractable gate
- Motor
overheat protection: auto power off if the motor up to 120°C and
re-working once temperature turn low.
- Anti-bumping
sensor: any obstacle during closing process, the gate will auto stop at
30-40cm away to avoid collision.
- Operating
voltage: 220v ±10%, 50HZ
- Limit
switch: Magnetic.
- Safety
sensor: IR safety sensor.
- Anti-climb-over
alarm: alarming once anybody climbing over gate.
- Caution
light: it will twinkle during gate sliding.
- Speed
clutch: rotate the clutch to switch electric control or manual control.
- Wireless
remote control: with maximum 50m effective distance.
- Gate
sliding speed: around 18m/min.
- Standard
equipped 8bits static screen or optional 500bits rolling screen.
- Gate
Length, Height, Color can be customized.
- DIY installation, easy
operation and maintenance.
