Description

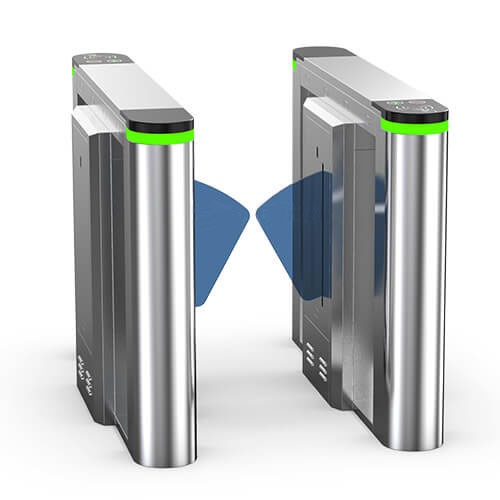

Automatic Swing Turnstiles Barrier

Automatic safety swing Turnstiles barrier Access control gate, which is electromechanical road barrier system, for human access are used. Stainless swing barrier system is ideal for Bank, Fitness Centers, cafes, Offices, Metro stations, supermarkets, Auditoriums etc., where orderly and safe access is required. Swing barrier gates come in different shapes and functions depending on the requirement. Like any other type of turnstile gate, it can use any access control system like RFID card system, finger print system, facial recognition, bar code/QR code system. Also, can be connected to remote control system / manual control. Gates can be configured for one-way or two-way access. Also these gates can be portable which can be used for rent.

Feature of Automatic swing Turnstiles barrier:

·        There are different designs of swing barriers such as anti-hit mechanism, fast lane swing and common mechanism.

·        Standard lane width is 550 mm. Lane width may be up to 1200 mm if necessary.

·        The standard configuration of Fast Lane Swing Speed ​​Gate is - Brushless Motor or servo motor.

·        it can also be compatible with any access control system like RFID card system, fingerprint system, facial recognition system, barcode system, etc. as well as manual button and remote-control system.

·        Automatic counting indicating passenger’s number.

·        Anti-pinch function, barriers auto open when power shut, ensure user safety.

·        Barriers move speed auto adjust with card reader, problem self-recovery which could convenient users and operators.

·        RFID card system, finger print system, facial recognition, bar code/QR code system.

The Technical Feature of the Swing Turnstile Gate (Model: HBST-814):

·        Alarm function - when there is an unauthorized entry, the alarm will be activated automatically and the motor will be locked.

·        Optional different working modes provide a signal to the main board with a one-way passing, two-way passing, infra-red opening or controlling passing (need another control system entrance guard, fingerprint, etc.), etc. All can be set via the main board.

·        The controller has 6 pairs of independent IR sensor ports, easy for troubleshooting and replacement.

·        Anti-hit mechanism, automatically reset, fast-lane mechanism

·        Maximum lane width can be 700-1000 mm.

·        Brushless motor, servo motor options

·        One direction or bi-direction control is optional.

·        Compatible with any access control system, fare collection system, ESD system, fire system, queue system, visitor management system, etc.

• Automatically open when power cutoff and automatically close when power on

·        Size and design can be customized as per requirements.
