Description

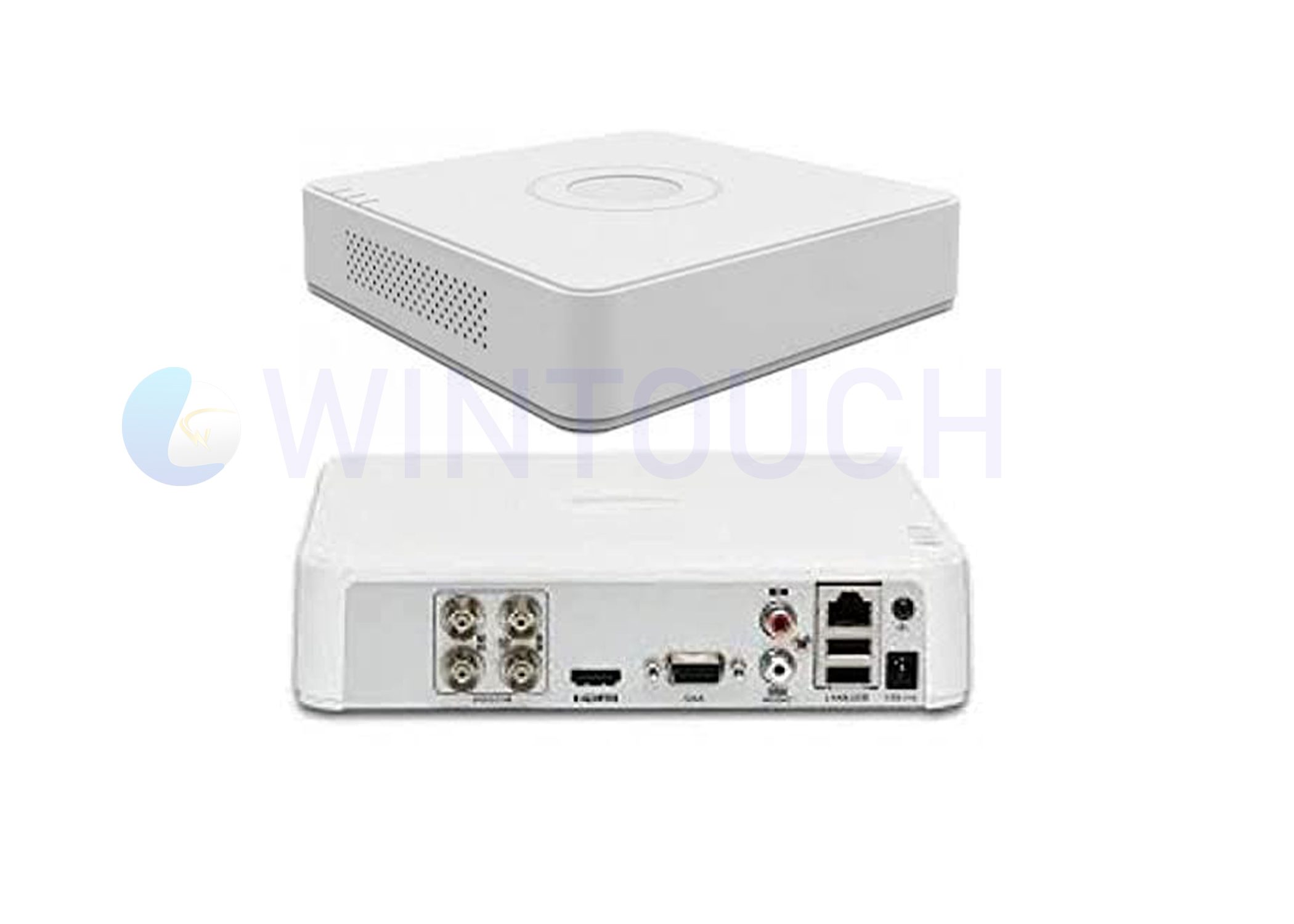

DVR (Digital Video Recorder)

DS-7104HGHI-F1

HIKVISION DVR,12V DC, ≤ 8W, 4-CH & 1 HDD Turbo HD 720 DVR, Connectable to HD-TVI & Analog cameras, HDMI & VGA outputs at up to 1920×1080P Resolution, One SATA Interface for HDD with up to 6TB capacity, support Hikvision DDNS,200×200×45 mm, 0.8 kg. Temp. -10◦ to +55◦ C.

DS – 7108HGHI-F1 & F1/N

HIKVISION DVR,12V DC, ≤ 12 W, 8-CH & 1 HDD Turbo HD 720P, Connectable to HD-TVI & analog cameras, HDMI & VGA output at up to 1920×1080P Resolution, one SATA interface for HDD with up to 6TB capacity, support HIKVISSION DDNS, 200×200×45 mm. Temp. -10◦ to +55◦ C.

DS-7116HGHI-F1 & F1/N

HIKVISSION DVR, 12V DC, 20W, 16-CH Turbo HD 720 DVR, Connectable to HD -TVI & Analog Cameras, HDMI & VGA Output at up to 1920×1080P Resolution, one SATA Interface for HDD with up to 6TB Capacity, Support Hikvision DDNS, 285×210×45 mm, ≤ 1.2 kg. Temp. -10◦ to +55◦ C.

DS-7104HQHI-K1

HIKVISION DVR, 12V DC, ≤8W, 04-CH Turbo HD 1080 DVR, 5 Signals Input Adaptively HDTVI/HDCVI/AHD/CVBS, up to 4 MP Lite Resolution for Recording, supports real time 1080 lite, one SATA interface, up to 6 network cameras can be connected, Support access by EZVIZ Cloud P2P, Support Hikvision DDNS, 200×200×45 mm, 1 kg. Temp. -10◦ to +55◦ C.

DS-7108HQHI-K1

HIKVISION DVR, 12 VDC, 1.33 A, ≤ 12 W 08-CH, Turbo HD 1080P, 5 signals input adaptively HDTVI / HDCVI / AHD / CVBS, up to 4 MP lite resolution for recording, Up to 12 network cameras can be connected, Support real time 1080 lite, one SATA interfaces, Support access by EZVIV Cloud P2P, Support Hikvision, 200 × 200 × 45 mm, ≤ 1 kg, -10 °C to +55 °C.

DS-7116HQHI-K1

HIKVISION DVR, 12 VDC, 1.9 A, ≤ 15 W 16-CH, Turbo HD 1080P, 5 signals input adaptively HDTVI / HDCVI / AHD / CVBS, up to 4 MP lite resolution for recording, up to 24 network cameras can be connected, Support real time 1080 lite, one SATA interfaces, Support access by EZVIV Cloud P2P, Support Hikvision, 285 × 210 × 45 mm, ≤ 1 kg, -10 °C to +55 °C.

DS-7204HGHI-F1

HIKVISION DVR,12 VDC, ≤8W, 4-CH Turbo HD 720P, 4 channels and 1 HDD 1U DVR, Connectable to HD-TVI & analog Cameras, HDMI Output and VGA output at up to 1920×1080P resolution, one SATA interfaces, support access by EZVIZ cloud P2P, support HIKVISION DDNS, 260 × 222 × 45 mm, ≤1 Kg, -10 °C to +55 °C.

DS-7208HGHI-F1

HIKVISION DVR,12 VDC, ≤12W, 8-CH Turbo HD 720P, 8 channels and 1 HDD 1U DVR, Connectable to HD-TVI & analog Cameras, HDMI Output and VGA output at up to 1920×1080P resolution, one SATA interfaces, support access by EZVIZ cloud P2P, support HIKVISION DDNS, 260 × 222 × 45 mm, ≤1 Kg, -10 °C to +55 °C.

DS-7216HGHI-F1

HIKVISION DVR,12 VDC, ≤20W, 16-CH Turbo HD 720P, 16 channels and 1 HDD 1U DVR, 5 signals input adaptively (HDTVI/AHD/CVI/CVBS/IP), Connectable to HD-TVI & analog Cameras, HDMI Output and VGA output at up to 1920×1080P resolution, one SATA interfaces, support access by EZVIZ cloud P2P, support HIKVISION DDNS, 260 × 222 × 45 mm, ≤1.2 Kg, -10 °C to +55 °C.

DS-7208HGHI-F2

HIKVISION DVR,12 VDC, ≤12W, 8-CH Turbo HD 720P, 8 channels and 2 HDDs 1U DVR, 5 signals input adaptively (HDTVI/AHD/CVI/CVBS/IP), Connectable to HD-TVI & analog Cameras, HDMI Output and VGA output at up to 1920×1080P resolution, 2 SATA interfaces, support access by EZVIZ cloud P2P, support HIKVISION DDNS, 380 × 320 × 48 mm, ≤2 Kg, -10 °C to +55 °C.

DS-7216HGHI-F2

HIKVISION DVR,12 VDC, ≤20W, 16-CH Turbo HD 720P, 16 channels and 2 HDDs 1U DVR, 5 signals input adaptively (HDTVI/AHD/CVI/CVBS/IP), Connectable to HD-TVI & analog Cameras, HDMI Output and VGA output at up to 1920×1080P resolution, 2 SATA interfaces, support access by EZVIZ cloud P2P, support HIKVISION DDNS, 380 × 320 × 48 mm, ≤ 2 Kg,     -10 °C to +55 °C.

DS-7232HGHI-K2

HIKVISION DVR,12 VDC 3.2 A, ≤ 18W, 32-CH Turbo HD 720P, 32 channels and 2 HDDs 1U DVR, 5 signals input adaptively (HDTVI/AHD/CVI/CVBS/IP), Connectable to HD-TVI & analog Cameras, HDMI Output and VGA output at up to 1920×1080P resolution, 2 SATA interfaces, support access by EZVIZ cloud P2P, support HIKVISION DDNS, 380 × 320 × 48 mm, ≤ 2.2 Kg,     -10 °C to +55 °C.

DS-7204HQHI-K1

HIKVISION DVR,48 VDC 3.2 A, ≤ 40W, 4-CH Turbo HD 1080P, HDTVI/HDCVI/AHD/CVBS signal input, Connectable to H.265+/H.265/H.264+/H.264 IP Cameras, up to 6 TB capacity for each disk, up to 4 MP lite resolution for recording, 1 SATA interfaces, support access by EZVIZ cloud P2P, support HIKVISION DDNS, 315 × 242 × 45 mm, ≤ 1.16 Kg, -10 °C to +55 °C.

DS-7208HQHI-K2

HIKVISION DVR,48 VDC, ≤ 60W, 8-CH Turbo HD 1080P, HDTVI/HDCVI/AHD/CVBS signal input, Connectable to H.265+/H.265/H.264+/H.264 IP Cameras, up to 6 TB capacity for each disk, up to 4 MP lite resolution for recording, 2 SATA interfaces, support access by EZVIZ cloud P2P, support HIKVISION DDNS, 380× 320 × 48 mm, ≤ 1.78 Kg, -10 °C to +55 °C.

DS-7216HQHI-K2

HIKVISION DVR,12 VDC, ≤ 25W,16 channels and 2 HDDs 1U DVR, HD 1080P, HDTVI/HDCVI/AHD/CVBS signal input, Connectable to H.265+/H.265/H.264+/H.264 IP Cameras, up to 6 TB capacity for each disk, up to 4 MP lite resolution for recording, HDMI output at up to 4K (3840×2160) resolution, 2 SATA interfaces, support access by EZVIZ cloud P2P, support HIKVISION DDNS, 380× 320 × 48 mm, ≤ 2 Kg, -10 °C to +55 °C.

DS-7232HQHI-K2

HIKVISION DVR,12 VDC 4.5A, ≤ 65W,32 channels and 2 HDDs 1U DVR, HD 1080P, HDTVI/HDCVI/AHD/CVBS signal input, Connectable to H.265+/H.265/H.264+/H.264 IP Cameras, up to 10 TB capacity for each disk, up to 4 MP lite resolution for recording, HDMI output at up to 4K (3840×2160) resolution, 2 SATA interfaces, support access by EZVIZ cloud P2P, support HIKVISION DDNS, 380× 320 × 48 mm, ≤ 2 Kg, -10 °C to +55 °C.
