Description

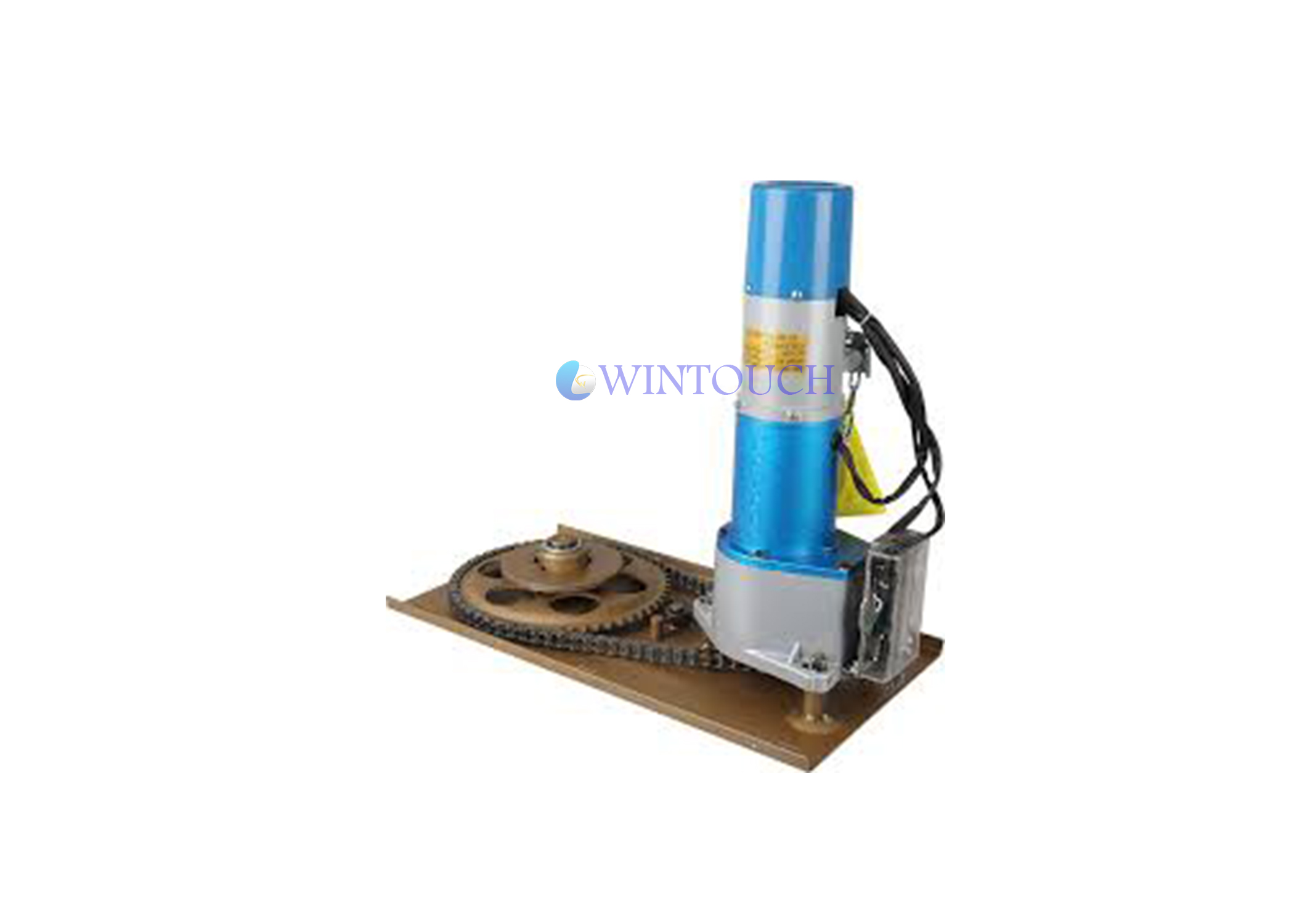

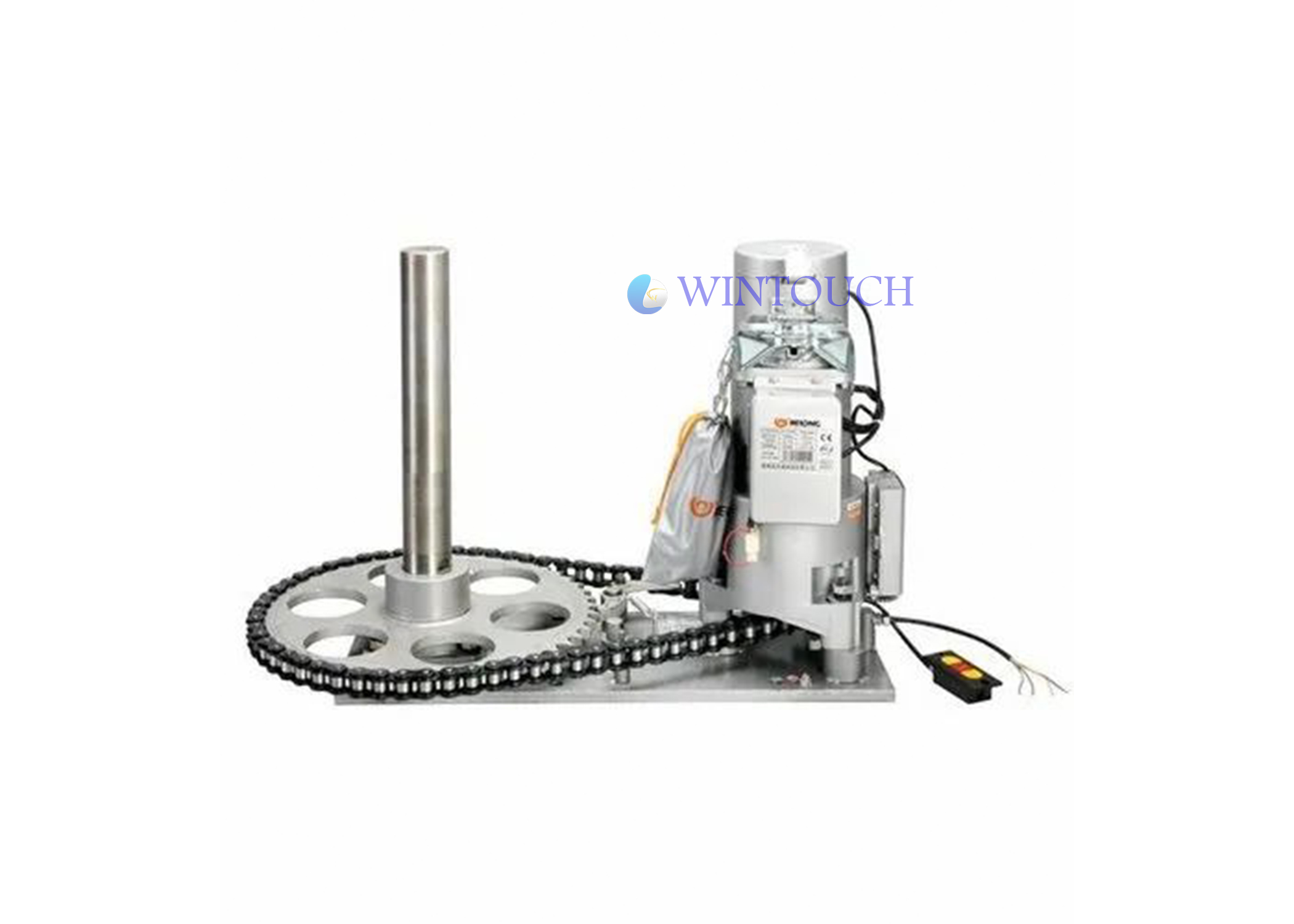

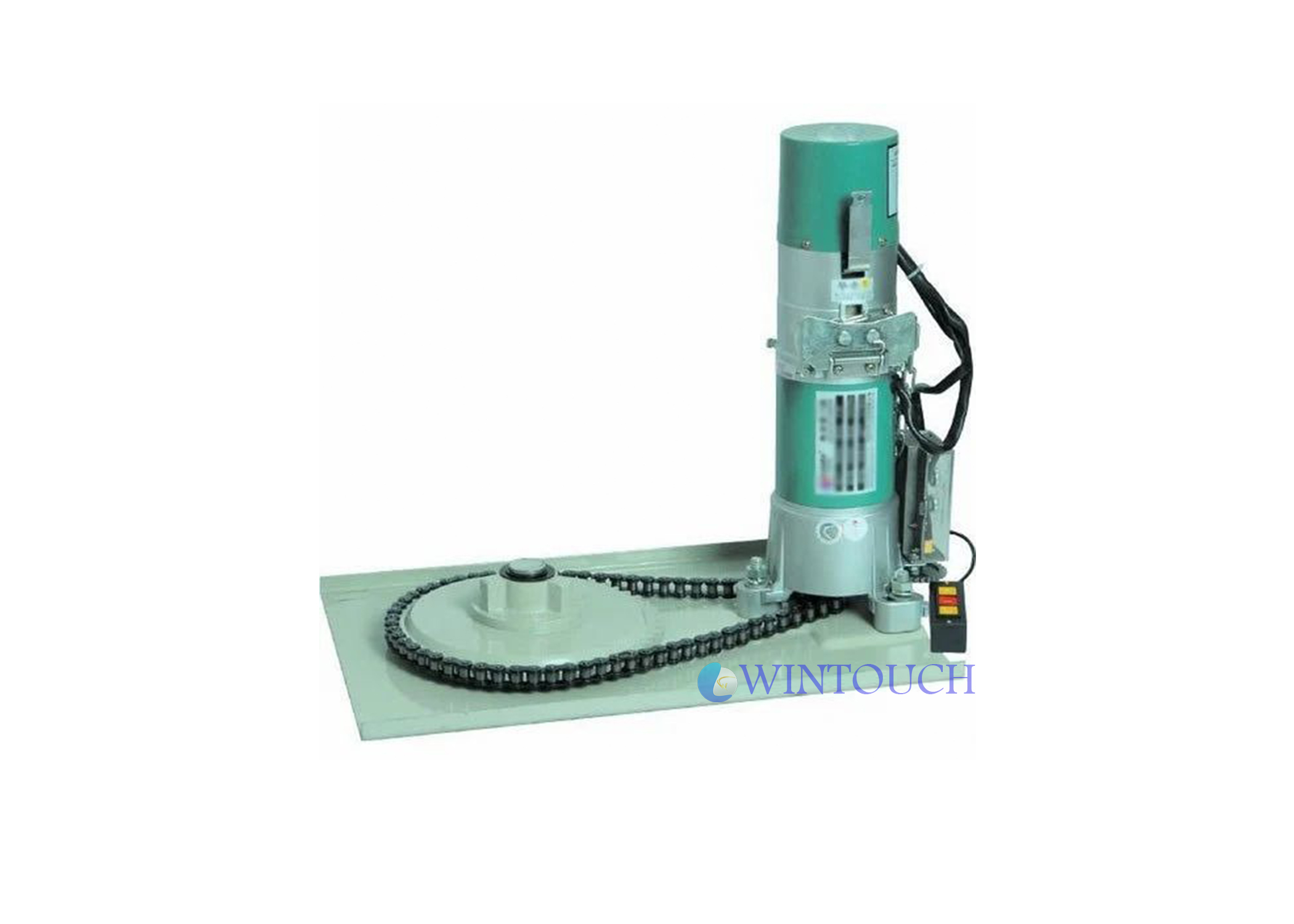

Automatic rolling shutter side motor

Automatic rolling shutter side motor is a type of chain motor, which is installed with the shutter door. These types of motors are more popular for heavy duty doors of various designs as they are more robust, and are a longer life technology. These motors are ideal and widely popular for factory doors, industrial doors, shop shutters or door operators. These motors are ideal and widely popular for factory doors, industrial doors, shop shutters or door operators. Popular motors are 300 kg AC, 600 kg AC, 800 kg AC, 1000 kg AC,1500 Kg & 2000 kg AC which esteemed clients can get from us.

300 KG AC, Automatic Rolling Sutter Motor.

·        Rated Voltage: 220V, 50HZ

·        Rated Current: 2.8A

·        Rated Power: 250W

·        Carrying Capacity: 300 KG

·        Output Torque: 168 Nm

·        Output Speed (RPM): 5.0/

·        Sort time Rotation Min: 8

·        Standard Drum Diameter: 4 Inch.

600 KG AC, Automatic Rolling Sutter Motor.

·        Rated Voltage: 220V, 50HZ

·        Rated Current: 3.3 A

·        Rated Power: 370W

·        Carrying Capacity: 600 KG

·        Output Torque: 412 Nm

·        Output Speed (RPM): 4.8

·        Sort time Rotation Min: 8

·        Standard Drum Diameter: 5 Inch.

800 KG AC, Automatic Rolling Sutter Motor.

·        Rated Voltage: 220V, 50HZ

·        Rated Current: 4.7A

·        Rated Power: 500W

·        Carrying Capacity: 800 KG

·        Output Torque: 168 Nm

·        Output Speed (RPM): 4.0

·        Sort time Rotation Min: 8

·        Standard Drum Diameter: 5 Inch.

1000 KG AC, Automatic Rolling Sutter Motor.

·        Rated Voltage: 220V, 50HZ

·        Rated Current: 4.9A

·        Rated Power: 400W

·        Carrying Capacity: 1000 KG

·        Output Torque: 809 Nm

·        Output Speed (RPM): 3.5

·        Sort time Rotation Min: 8

·        Standard Drum Diameter: 6 Inch.

1500 KG AC, Automatic Rolling Sutter Motor.

·        Rated Voltage: 380V, 50HZ

·        Rated Current: 3.8A

·        Rated Power: 1000W

·        Carrying Capacity: 1500 KG

·        Output Torque: 1617 Nm

·        Output Speed (RPM): 3.5

·        Sort time Rotation Min: 13

·        Standard Drum Diameter: 6 Inch.

2000 KG AC, Automatic Rolling Sutter Motor.

·        Rated Voltage: 380V, 50HZ

·        Rated Current: 4.1A

·        Rated Power: 1000W

·        Carrying Capacity: 2000 KG

·        Output Torque: 2450 Nm

·        Output Speed (RPM): 3.6

·        Sort time Rotation Min: 13

·        Standard Drum Diameter: 8 Inch.
