Description

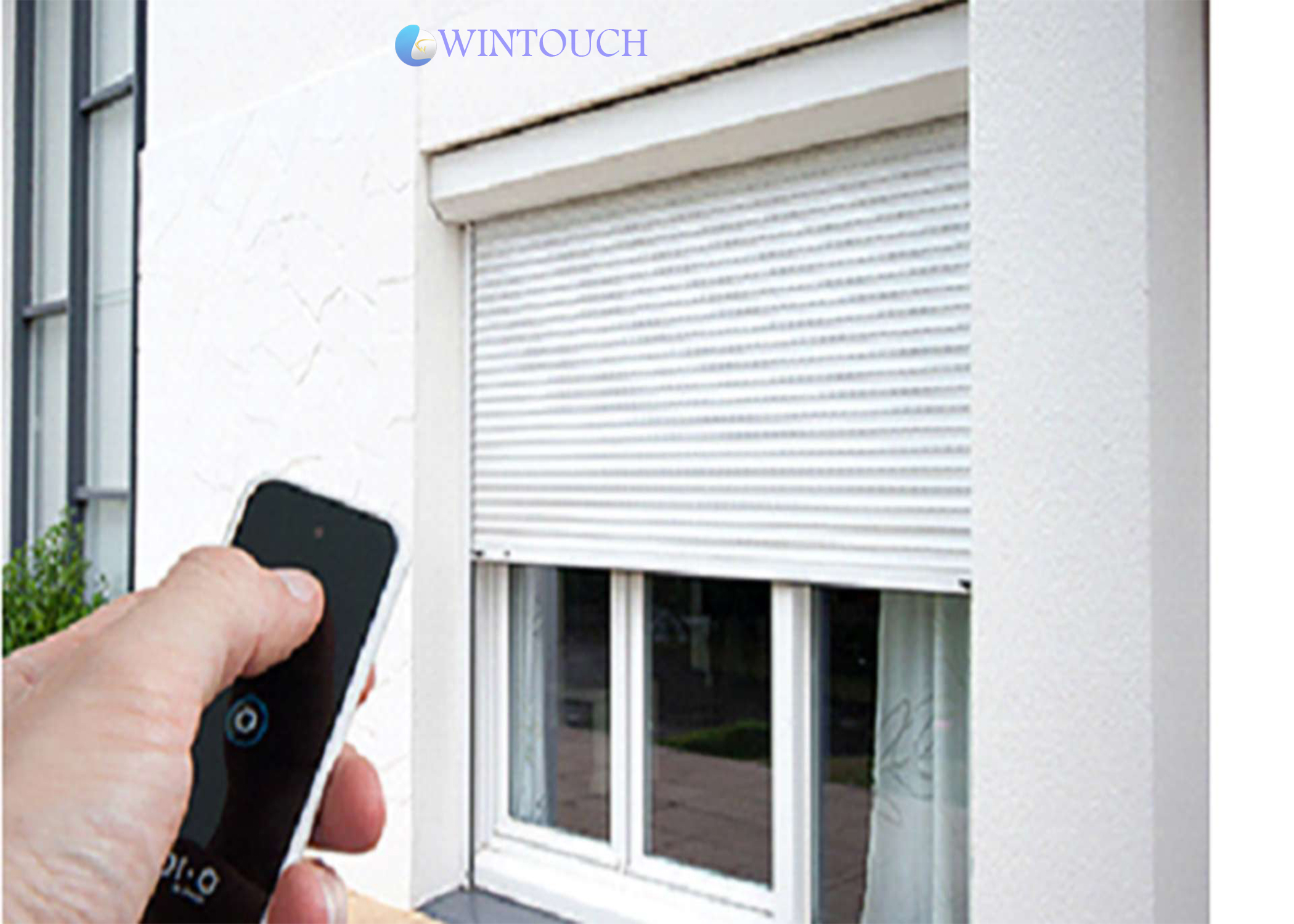

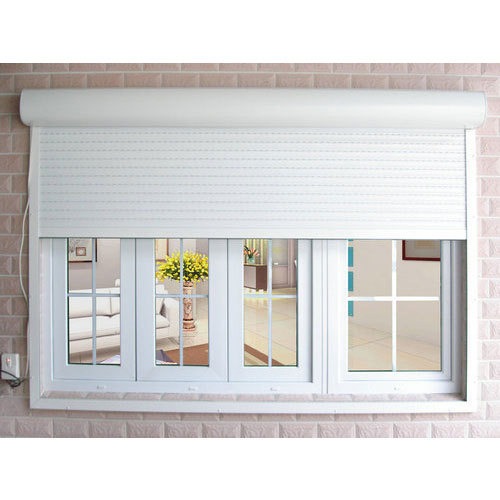

Aluminum Rolling Shutter
Wintouch Automation are
best supplier of Aluminum Rolling Shutters in Bangladesh. An automatic rolling shutter is a part
of the Home Automation System. We supply the best quality and heavy-duty
motorized rolling Shutter for residential, commercial, industrial Building, It also many applications including doors for vans, garages,
kitchens, School and warehouses. It provides protection against wind, rain,
fire and theft. In shutter form, it is used in front of a window and protects
the window from vandalism and burglary attempts.
Our Automatic Rolling Shutter door are
created of interlocked Galvanized, Excited Protects and Non-Insulated Stainless
Steel, PVC, Aluminum profiles and Bright Steel and
Stainless Still Bar Rolling Grills Each of our Rolling Screens is firmly
developed to promote trouble-free operation and long life.
The Roller Shutter Door can moreover be
planned as per client’s requirements.

The Key Features of Aluminum
Rolling Shutter:
·
Aluminum
shutters are available in double wall with and without Insulation.
·
Available
in Natural Aluminum finish, anodized finish or Powder coating.
·
The heavy-duty shutter motor
is imported from renowned shutter manufacturers in Italy, Germany & China.
·
Motorized
Aluminum shutters are self-sufficient and can be Controlled with a single push
button.
·
Our
shutters have in-build high performance drives and intelligent, smart controls.
·
Drives
have weight carrying capacity up to 2000 Kgs.
·
In
case of power failure, shutters can be operated manually using a hand crank or
chain drive.
· Stable operation, sleek,
classy and smooth, low noise, and small vibration.
·
Our
Drives are inbuilt with Special Anti-Drop device to ensure that the door does
not free-fall in any worst conditions.
· Easy to clean – minimal
dust accumulation in the concealed sheath while not in use.
· Suitable for internal
applications where aesthetics is more of focused.
· Supply manual button and
security lock and can match with remote control. (Long distance receiver and
easy operation)
· Limit
switch unit enables precise adjustment of shutter in both UP-DOWN position and
safety.
· Suitable for most places,
best for large coverings and outdoor areas.
· Easy hauling with a remote
control or a wall switch.
·
Can close all shutters
of the home all at once with one click. Most suitable for large areas.
Automatic Aluminum
Rolling Shutter specific data:
Shutter Type
| Aluminum
|
Operating Option
| With Motorized
|
Drive motor
| Gear Motor. 0.75 – 3.0 KW/IP 55
|
Control Component
| Push Button, Remote Control. |
Opening Time & Closing Time
| 0.6 ~ 1.5 m/s
|
Safety Feature
| Photocell Safety Sensor
|
SW Max
| 9500 mm
|
SH Min/ Max
| 600 – 9500 mm
|
Controller System
| limit switch /Encoder
|
Power supply
| 1 Phase 220 v /110 v
3 Phase 380 v/420 v
/480 v
|
Command System
| Loop Sensor, Rope switch, remote control, finger
print,
Key card, Face detector, wi-fi control
thought Apps
|
Track
| Standard – Stainless steel 201
Optional – Aluminum,
Stainless steel 304
|
Shutter Curtain
| Aluminum Curtain (we can Provide as Per Requirement.)
|
Frame Work
| Standard – Stainless steel 201 Optional – Aluminum, Stainless steel 304
|
Working Temperature
| -10 ◦c ~ +50 ◦c
|
Shutter box:
Formed steel or aluminum extrusion box designed to protect
shutter’s internal components.
Built-in roller shutter doors
Where the roller shutter box is built into the lintel above the
window.
