Polycarbonate Rolling shutter
Polycarbonate Rolling shutter Polycarbonate Rolling shutter Polycarbonate Rolling shutter Polycarbonate Rolling shutter

Polycarbonate Rolling shutter

Description

                              Polycarbonate Rolling shutter.

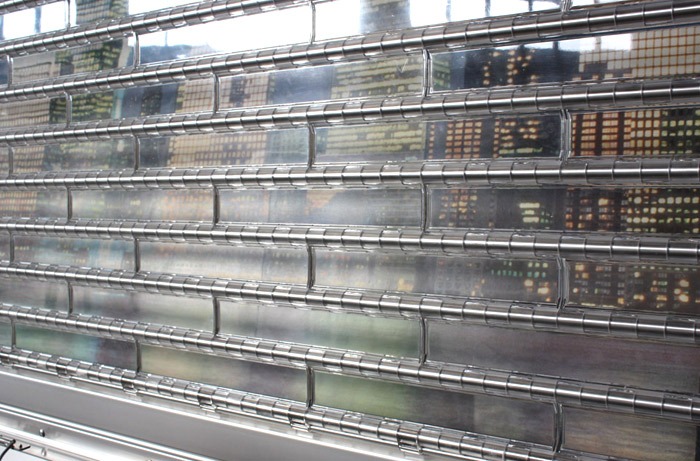

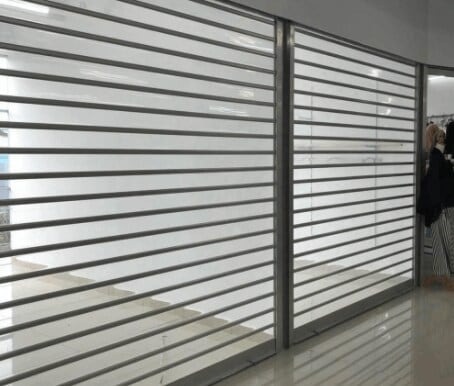

Polycarbonate rolling shutter are made from a composite polycarbonate plastic formula and it is a transparent rolling shutter system. It with stands high impact which gives maximum clarity while maintaining safety and durability. Our transparent acrylic shutters are used in a wide range of situations including banks, museum exhibitions and galleries, where high value items must be protected and have a 24/7-hour display function. It does not have public access.

 These types of shutters are flexible, plastic rolling shutters and acrylic shutters are the most popular. Poly-carbonate rolling door is also known as PC door, polycarbonate gate, clear door, acrylic shutter, PC rolling gate, flexible shutter, transparent rolling gate, transparent door etc




Features and Benefits of polycarbonate Rolling shutter:

·       Strong and Transparent: Crystal shutter doors enhance beauty in use, they have high strength and high rigidity. It has corrosion and weather resistance properties. It shows good anti-aging, anti-rain, and long service life.

·       Design Advantages: Acrylic shutter doors are simple and elegant. It can be designed as per your requirement.

·       Smooth operation: light in weight, reliable balance system and operation, strong driving device, flexible roller design.

·       Opening/ closing method: The Transparent door has a variety of manual and automatic control methods, such as electric button, manual drawstring, geomagnetic induction, Wi-Fi controlling, etc., the door opening and closing method can be designed according to the user's needs.

·       Long Life: When making crystal shutter doors, appropriate materials are selected, and the door structure is reasonably designed to adapt to different climates and weather changes, and has a long-term protective effect on the indoor environment.

·       Safety: An anti-collision safety device can be set under the door (optional). When closing the door, it closes quickly to ensure the safety and exit of people and things when it approaches an obstacle. and the remote control and light control are (optional) The door can be installed inside or outside.


Technical data of Polycarbonate Transparent shutter door:

Product
Transparent Polycarbonate Rolling Shutter/Plastic rolling Shutter/Flexible shutter
Material
Poly Carbonate and Aluminum
Thickness of the profile
0.8MM-2.0MM
Motor power
0.25KW-0.75KW (As per Shutter Size)
Power supply
1 phase 220v or 3 phase 420V, 50 HZ
Motor
Side motor/Tubular 300kg/600kg/800kg/1000kg
Controller system’s
Encoder / limit switch
Spring Thickness
1.4MM (As per Customer Requirement)
Opening
Roll up/Sliding (As per Requirement)
Thickness Of Profiles
0.8MM – 5MM
Opening Way
Electric/Manual/Remote control/Button/Wi-Fi

Bottom beam & Sliding

Aluminum/SS
Wall to wall size

The width of a single shutter door can be up to 45 meters and its height can be up to 50 meters. (It can make sliding and rolling)
